The Ender-5 Max 3D Printer combines pro-level quality with a rigid all-metal frame and 64-point auto bed leveling for reliable, efficient printing. Featuring a CoreXY structure, it delivers ultra-fast speeds up to 700 mm/s and a massive 400 mm³ build volume—perfect for large or multiple parts. Designed for print farms, it supports multi-printer WLAN management and includes a tri-color indicator light, with an optional enclosure for enhanced temperature control and engineering-grade prints.
Features of Creality Ender 5 Max:
- Smart Auto-Leveling: 64-point automatic bed leveling ensures perfect first layers every time.
- Sturdy Build: Reinforced aluminum frame with precision linear rails for smooth, accurate prints.
- Dual Z-Axis Drive: Delivers flawless stability and supports heavy models up to 5 kg.
- High-Speed Printing: CoreXY system achieves speeds up to 700 mm/s for faster production.

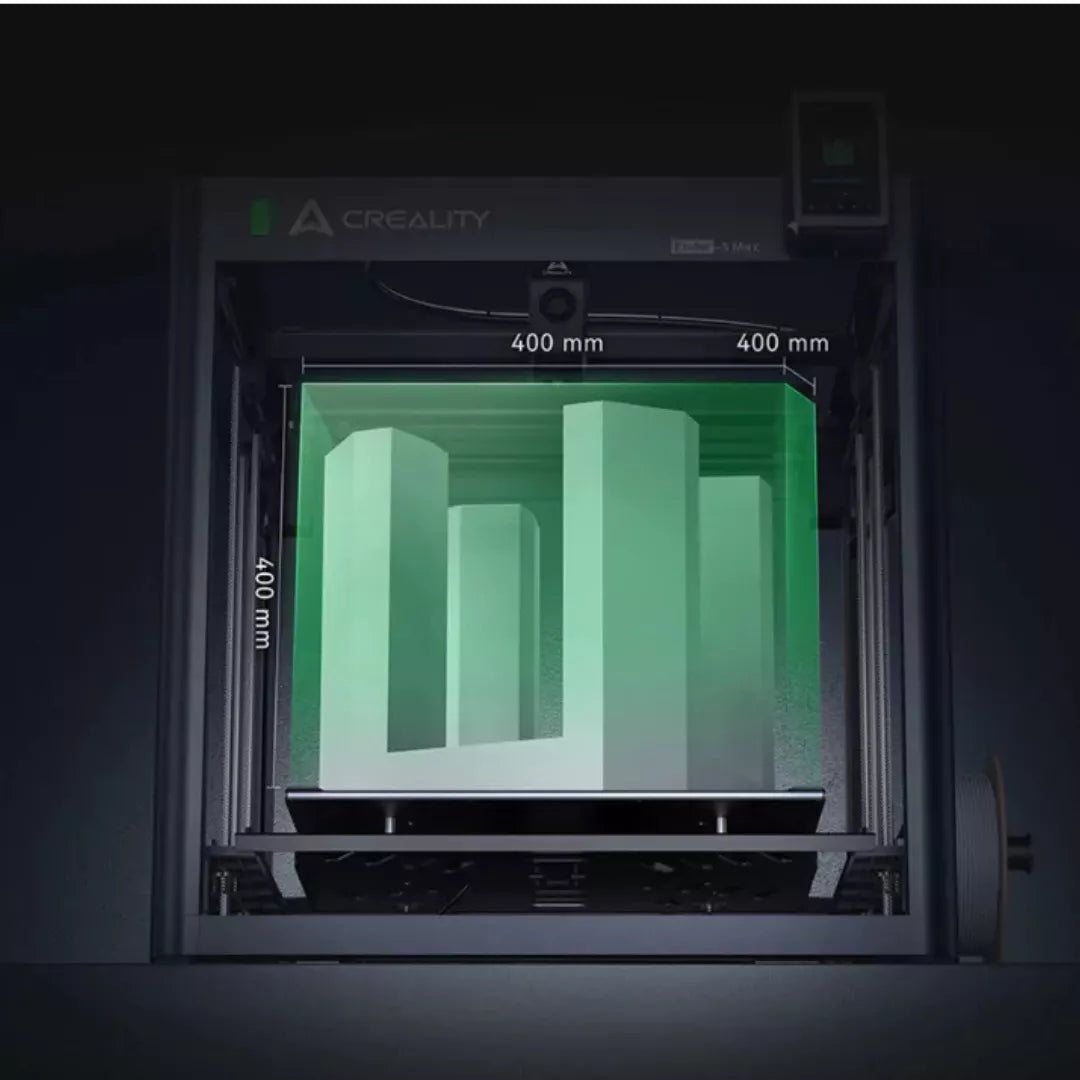

- Large Build Volume: 400×400×400 mm space for large models or batch prints.
- Powerful 1000W Heatbed: Heats to 80°C in 200 seconds, supporting multiple filament types.
- Efficient Epoxy Plate: Better adhesion, easy print removal, and energy savings.
- Smart Connectivity: Wi-Fi printing, 8GB internal storage, and centralized multi-printer control.
-
Quiet & Reliable: ≤55 dB operation, auto filament load/unload, and active input shaping.
Technical Specifications Of Creality Ender 5 Max:
- Printing Technology: FDM (Fused Deposition Modeling)
- Build Volume: 400 × 400 × 400 mm
- Printing Speed: Up to 700 mm/s
- Acceleration: Up to 20,000 mm/s²
- Printing Accuracy: ±0.1 mm
- Layer Height: 0.05–0.3 mm
- Extruder: Direct Drive Extruder
- Filament Diameter: 1.75 mm
- Nozzle Diameter: 0.4 mm (compatible with 0.6/0.8 mm)
- Nozzle Temperature: Up to 300 °C
- Heatbed Temperature: Up to 100 °C
- Build Plate: Epoxy Flexible Build Plate
- Leveling Mode: 64-Point Auto Leveling
- File Transfer: USB Drive / Wi-Fi
- Display: 4.3" Color Touch Screen
- Filament Runout Sensor: Yes
- Power Loss Recovery: Yes
- Input Shaping: Yes
- Lighting Kit: Yes
- Indicator Light: Tri-Color (Red/Green/Yellow)
- Supported Filaments: Hyper PLA, PLA, PETG, TPU95A, ABS, ASA, PLA-CF, PA, PLA-Silk
- File Format: G-code
- Slicing Software: Creality Print 5.1+
- Supported Slicing File Formats: STL, OBJ, 3MF
-
App for Cloud Printing: Creality Cloud
