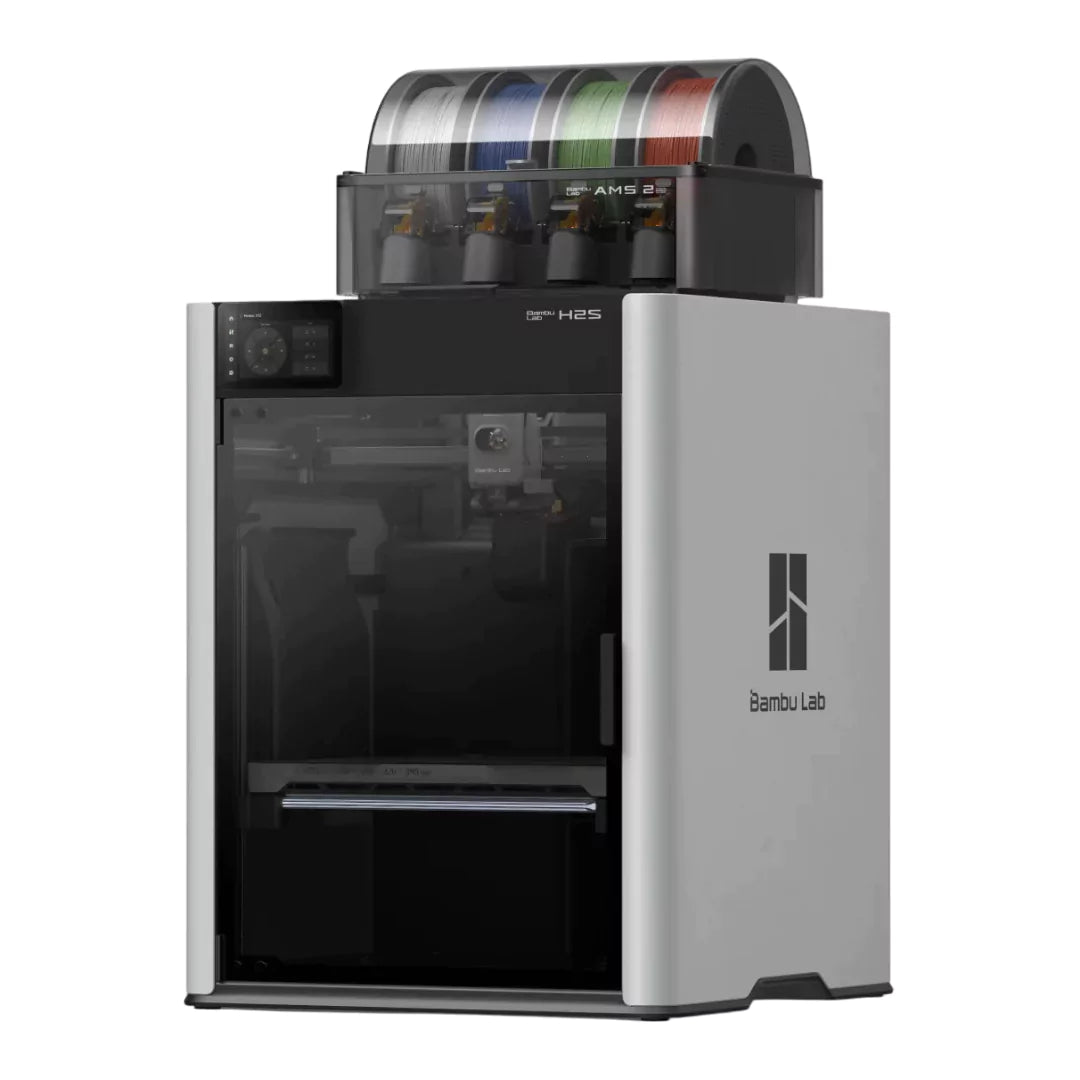

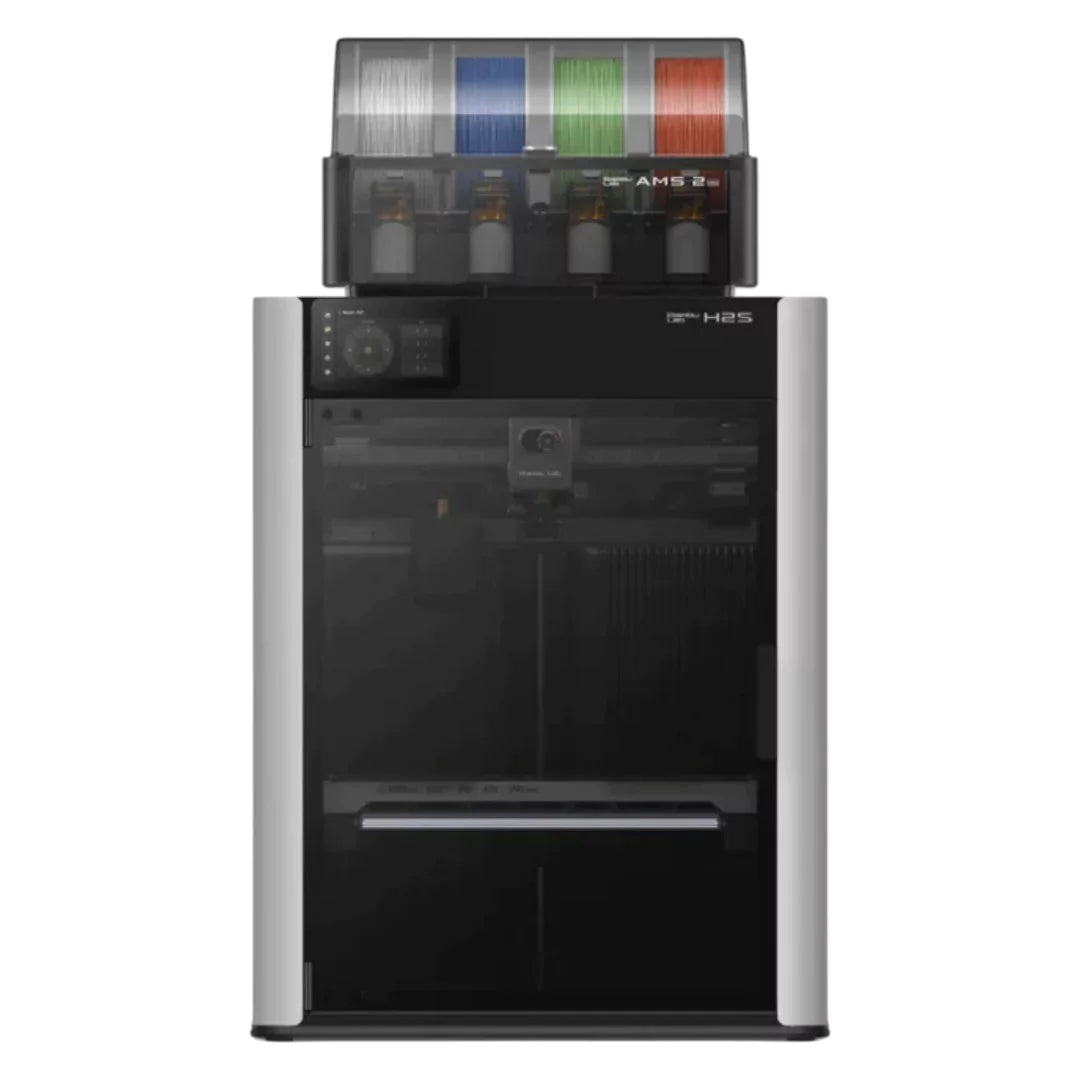

The Bambu Lab H2S AMS Combo 3D Printer combines 3D printing, multi-material color printing, laser cutting, and digital cutting into one powerful machine. Featuring a spacious 340×320×340 mm build area, ultra-precise performance, fast print speeds, and smart AI monitoring, it’s perfect for makers and professionals looking to create complex parts and designs with ease and reliability.
Features of Bambulab H2S AMS Combo:
- All-in-One Capabilities: High-precision 3D printing, multi-color printing, laser cutting, and digital cutting in one machine.
- Precision Engineering: Self-correcting Vision Encoder maintains <50 μm accuracy and delivers perfect hole & contour alignment.
- Advanced Materials Support: 350°C hotend + 65°C heated chamber for printing engineering-grade and reinforced materials.
- Flawless Results: AI vision, 23 sensors, flame detection, and pre-flight checks prevent failures and ensure safe operation.
- Flexible Environment Modes: High-temp mode for strong materials, low-temp for PLA/PETG, and safe laser cutting with fume extraction.
- Large & Efficient Output: 340×320×340 mm build volume, one-piece printing, and fast production without quality loss.
- Advanced Cutting & Engraving: Live spatial alignment, auto sheet arrangement, 10W laser, and Air Assist for precise, smoke-free cuts.
- Durable & Safe Design: Fire-resistant housing, rigid aluminum frame, low noise operation, quick-swap nozzles for convenience.
- Smart Connectivity: Cloud or offline use, MQTT developer mode, and real-time mobile alerts for print progress & safety.
Technical Specifications Of Bambulab H2S AMS:
-
Printing Technology & Build
- Printing Technology: Fused Deposition Modeling (FDM)
- Build Volume: 340 × 320 × 340 mm³
- Hotend: All-metal, Max Temp 350°C
- Nozzle Sizes: 0.2 / 0.4 / 0.6 / 0.8 mm
- Filament: 1.75 mm (PLA, PETG, TPU, ABS, PC, PA, Carbon/Glass Fiber Reinforced, etc.)
-
Precision & Performance
- Vision Encoder for self-correction: <50 μm precision
- Auto hole & contour compensation
- Max Speed: 1000 mm/s
- Max Acceleration: 20,000 mm/s²
- Standard Flow Rate: 40 mm³/s
- High-Flow Option: 65 mm³/s
- Heated Chamber up to 65°C
- Max Heatbed Temp: 120°C
-
Safety & Sensors
- Filament run-out & tangle detection
- Power loss recovery
- Flame & temperature sensors
- Pre-flight system check
- Safety key included
-
Laser Cutting (Optional Laser Edition)
- 10W Semiconductor Laser (455 nm)
- Max Cut Thickness: 5 mm (wood, acrylic, leather, metal sheet)
- Max Engraving Speed: 400 mm/s
- Safety Class: Overall Class 1
- Air Assist Pump for clean cuts
-
Digital Cutting & Drawing
- Max Cutting Thickness: 0.5 mm
- Supported Materials: Paper, PVC, Vinyl, Leather
- Cutting Area: 300 × 285 mm²
- Drawing Area: 300 × 255 mm²
- Auto Pen/Blade Recognition
-
Connectivity & Controls
- 5” Touchscreen

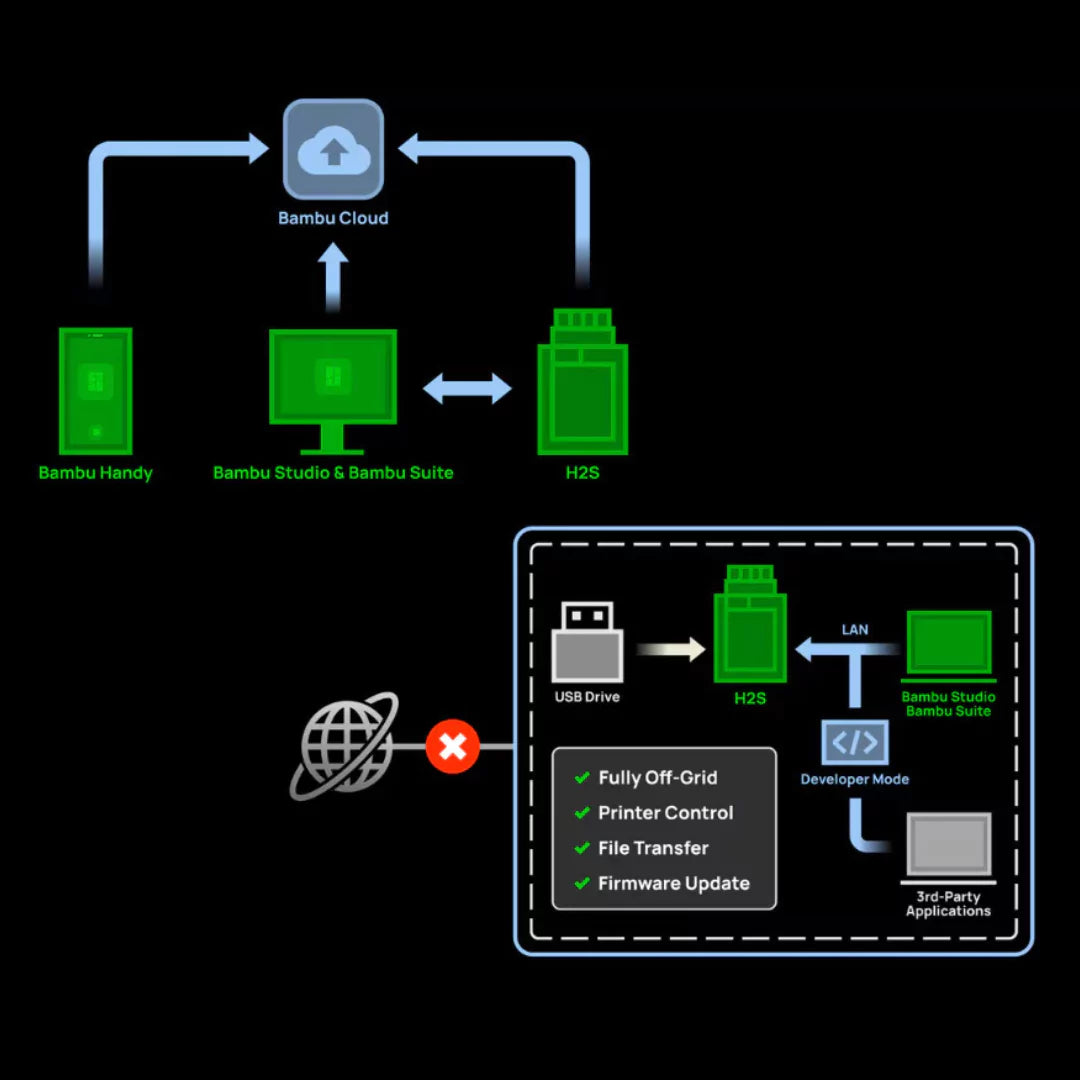

- Cloud or Offline Mode
- Developer Mode (MQTT)
- Mobile Alerts

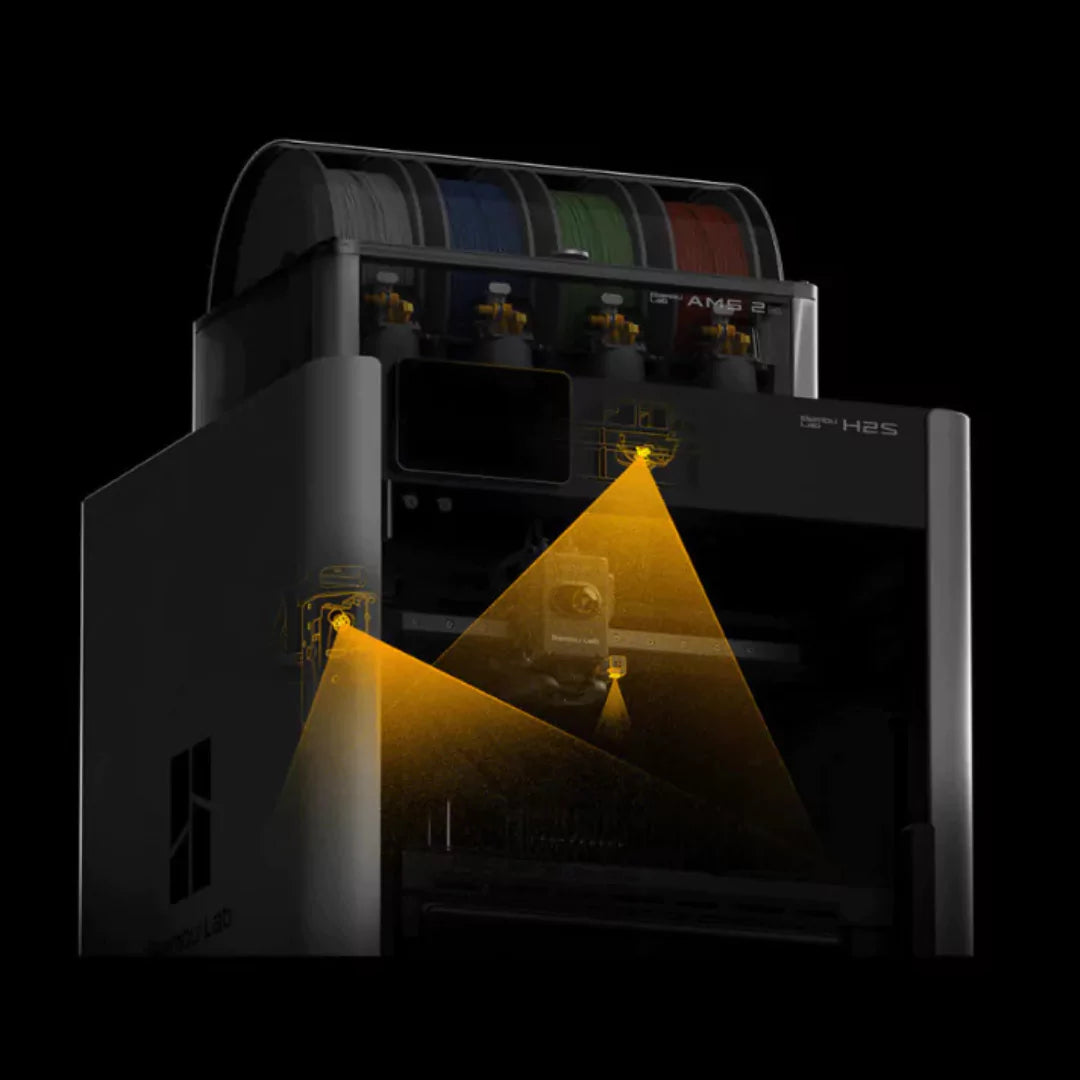

- Built-in Cameras (1080p + BirdsEye)
-
Physical Specs
- Dimensions: 492 × 514 × 626 mm³
- Weight: 30 kg (Standard) / 30.5 kg (Laser Edition)
- Power Supply: 100–240V, Max Power 2050 W
-
Cooling System
- Multiple Fans (Part, Hotend, Mainboard, Chamber Exhaust)
