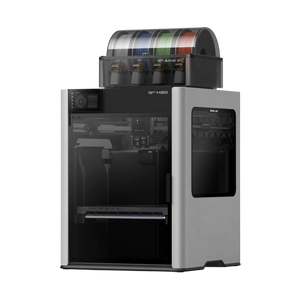

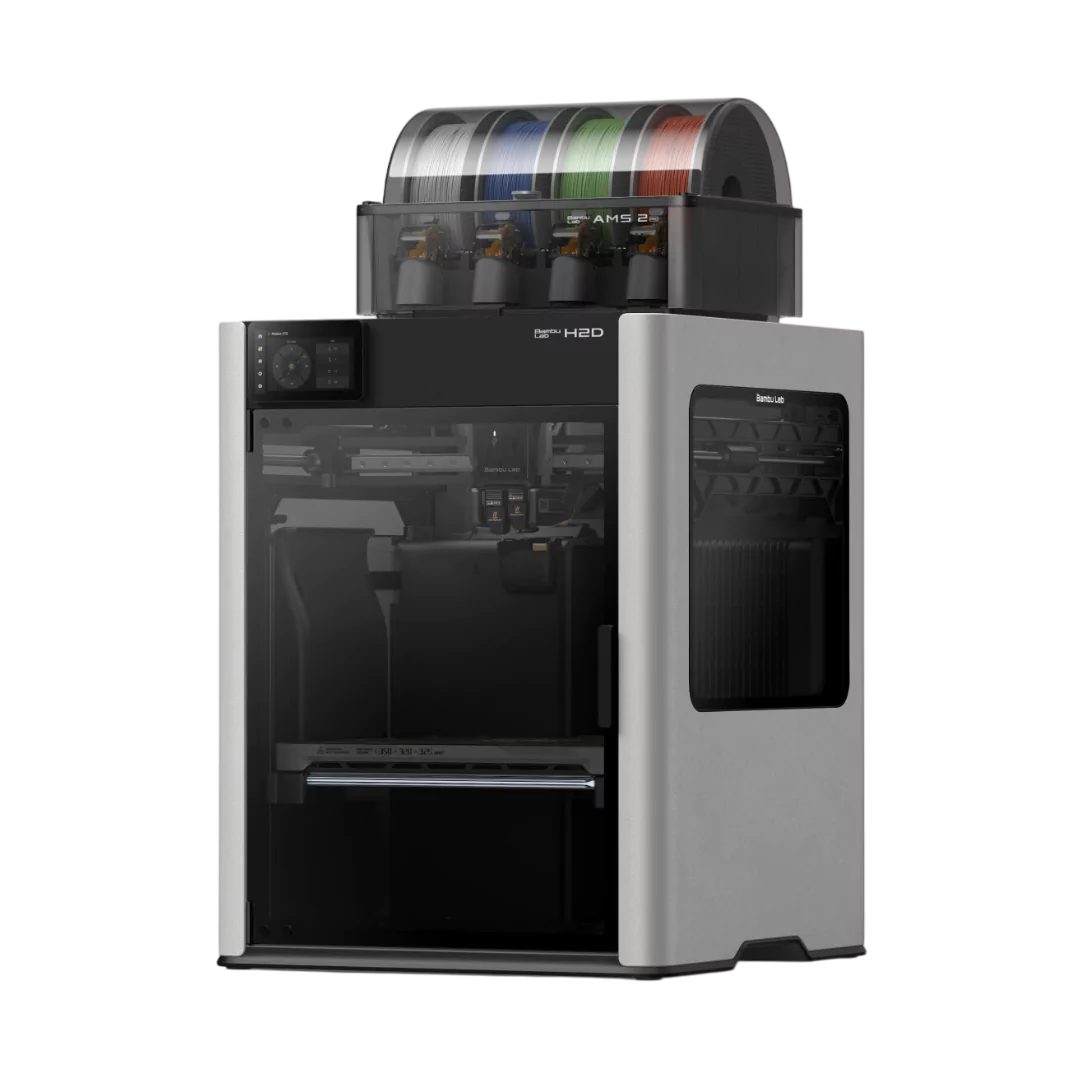

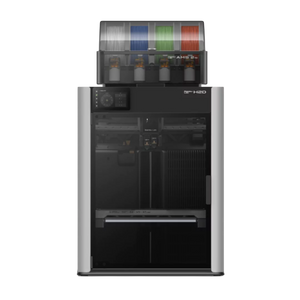

The Bambu Lab H2D 3D Printer packs industrial-grade making into a desktop machine: dual-nozzle multi-material/color printing up to 350 °C, a 350×320×325 mm build volume, optional 10 W/40 W laser modules for engraving/cutting, and 5 µm motion calibration for exceptional precision.
Features of Bambulab H2D AMS Combo:
- All-in-one maker: 3D printing, laser engraving/cutting (10 W / 40 W, 455 nm) & digital plotting in one compact unit.

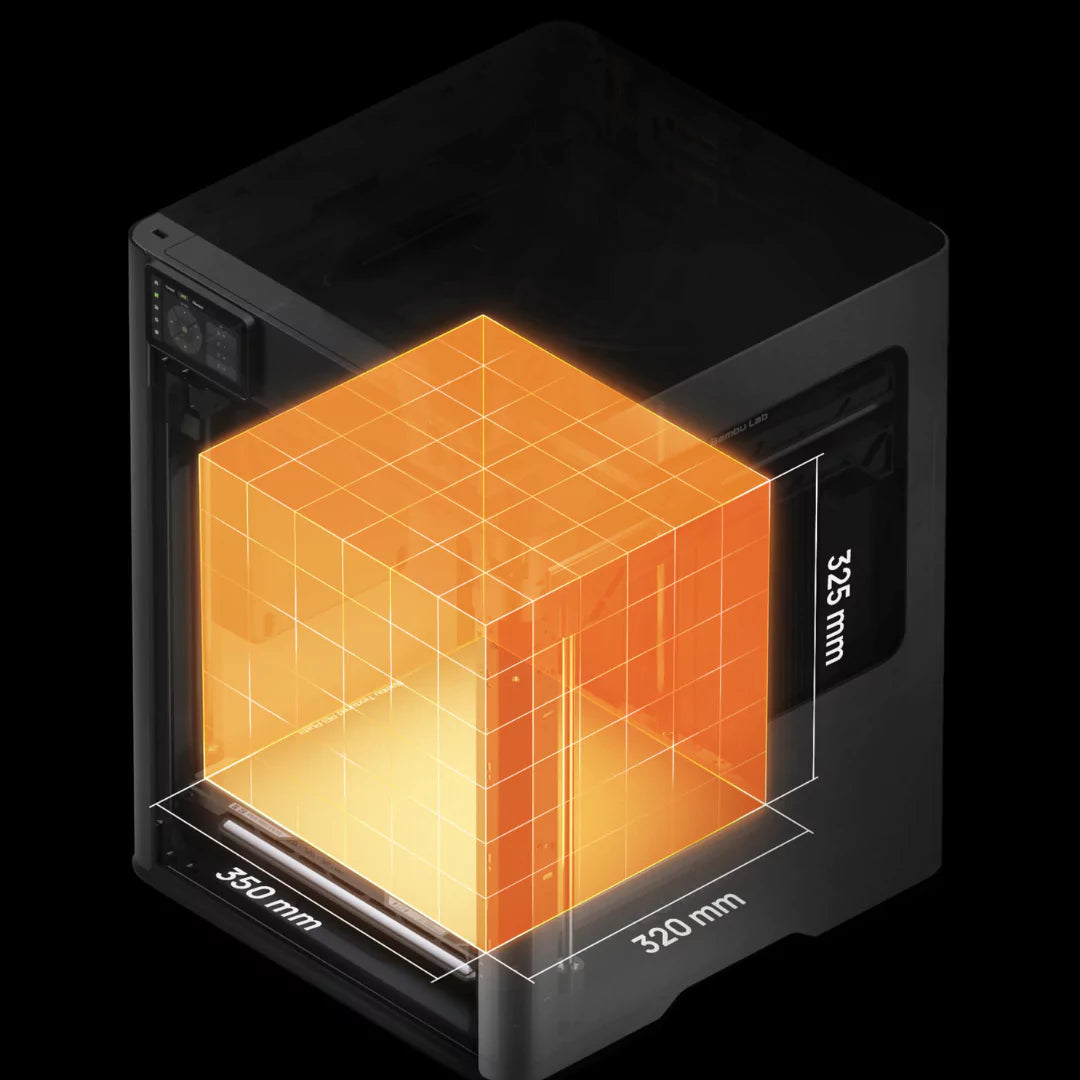

- Large workspace: 350 × 320 × 325 mm build area.
- High-temp + speed: 350 °C hotend, heated chamber (~65 °C), high-flow hotend optimized for fast prints.

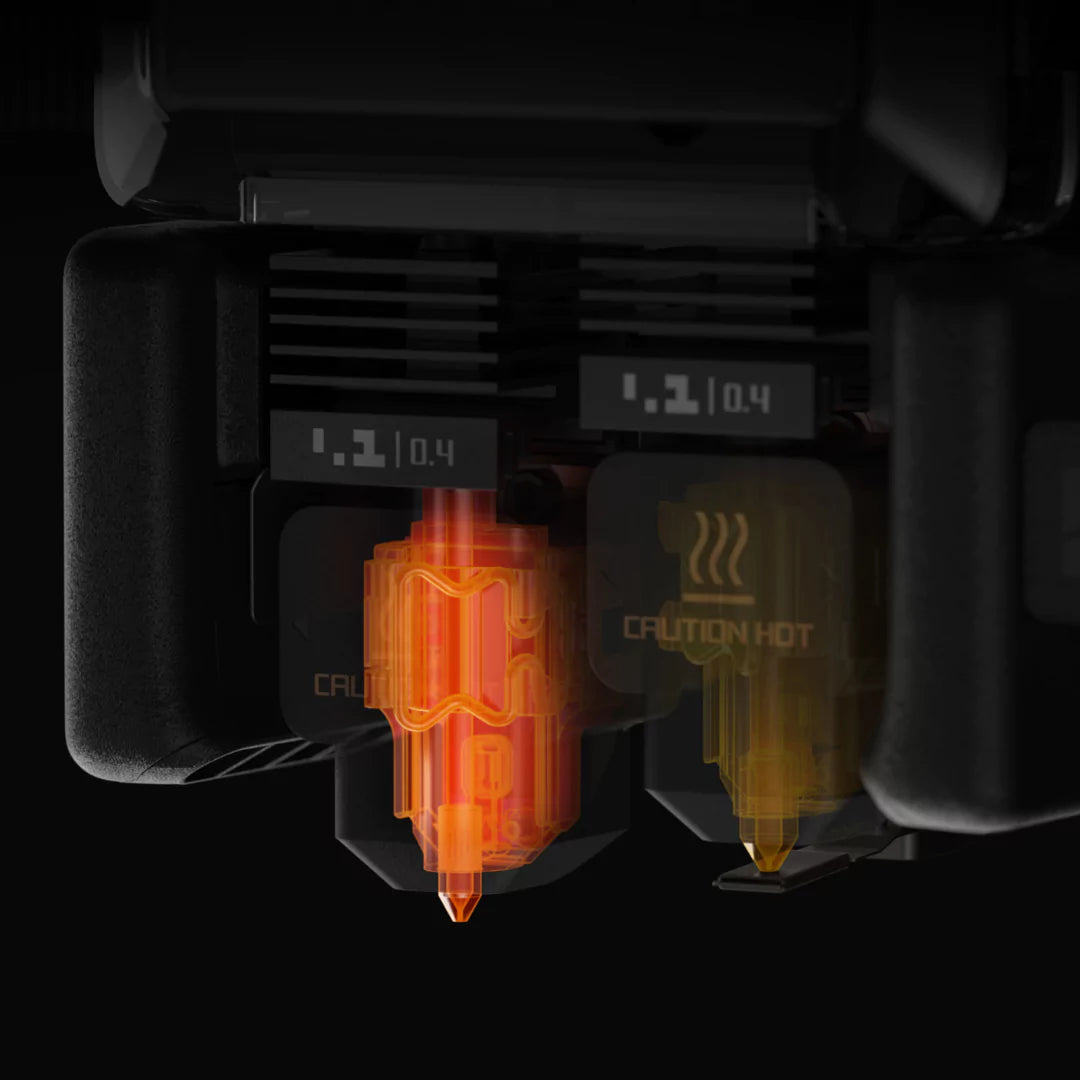

- Dual-nozzle system: Rapid multi-material/color; auto alignment with < 25 µm offset; clean, low-purge supports.

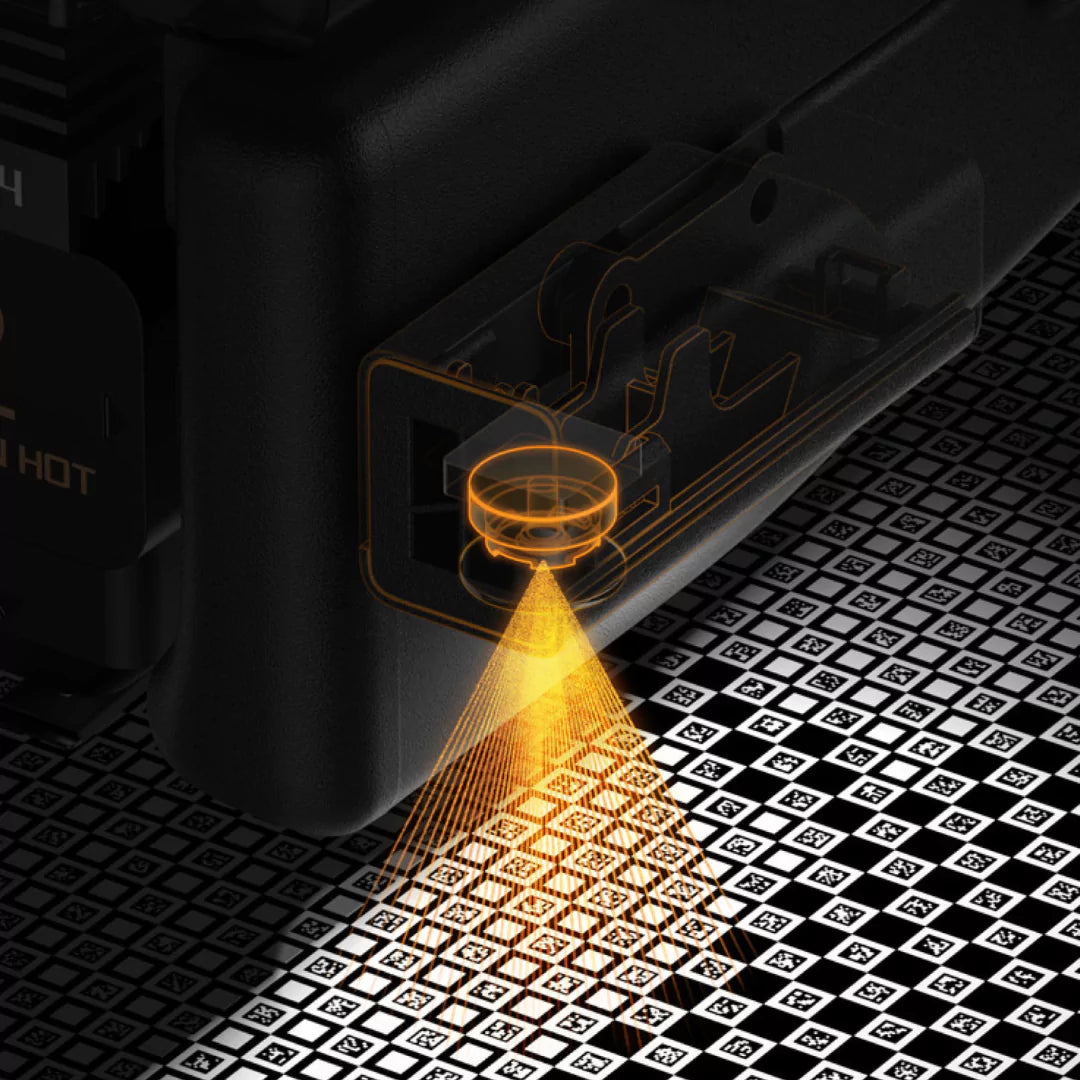

- Precision motion: Up to 10× tighter accuracy; optional vision encoder (50 µm motion, 5 µm optical tracking).

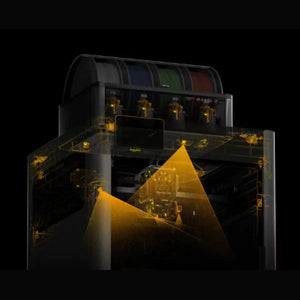

- AI vision & sensors: Tunes extrusion for smoother surfaces and accurate dimensions.
- NozzleVision & flow control: Macro monitoring catches clogs/air-printing; pressure-sensed auto flow for sharp edges.
- Ceramic throat tube: Heat-resistant, low-friction path that resists clogs.
- Smart filament handling: 15-sensor monitoring, Material CodeSync; AMS 2 Pro/HT with sealed auto-drying & brushless feed; RFID presets.
- One-tap setup: Auto laser focus & material thickness; Auto-Fit calibration for perfect fits first try.
- Cutting & plotting tools: Precise digital cutting, pen drawing, non-contact 3D mesh scan; rotary module for cylindrical/spherical parts; Bird’s-Eye WYSIWYG camera.
- Surface quality at speed: Vibration compensation + floating feet for smoother finishes.
- Safety suite: Laser-safe windows & door sensors, emergency stop & buzzer, fire detection (optional CO₂), closed-loop thermal control, adaptive airflow.
- Connectivity: Cloud or fully offline operation; Developer Mode with MQTT.
- Workflow ready: Bambu Studio/Suite integration for print-then-cut color projects.
Technical Specifications Of Bambulab H2D AMS:
-
Build & Size
- Build volume: 325×320×325 mm (single), 300×320×325 mm (dual)
- Machine size: 492×514×626 mm; weight: 31 kg
- Chassis: Aluminum/steel; panels: glass/plastic
-
3D Printing
- Technology: FDM; dual-nozzle
- Filament: 1.75 mm; materials: PLA, PETG, TPU, PVA/BVOH, ABS/ASA, PC, PA, PET, CF/GF composites (PPA/PPS families)
- Nozzles: 0.2/0.4/0.6/0.8 mm (0.4 included), hardened steel
- Hotend: all-metal up to 350 °C; bed up to 120 °C; active chamber ~65 °C
- Speed/accel: up to 1000 mm/s, 20,000 mm/s²
- Flow rate: 40 mm³/s (std), 65 mm³/s (high-flow option)
- Plates: Textured & Smooth PEI
-
Vision, Sensors & Filtration
- Cameras: 1080p live/nozzle/toolhead; Bird’s-Eye 3264×2448 (Laser Edition)
- Sensors: door, filament runout/tangle, power-loss recovery; AMS odometry
- Filters: G3 pre-filter, H12 HEPA, granulated carbon
-
Controls & I/O
- 5″ 720×1280 touchscreen; 8 GB eMMC + USB
- Control: touchscreen, mobile app, PC app
- Wi-Fi 2.4/5 GHz (IEEE 802.11 a/b/g/n); NPU 2 TOPS
-

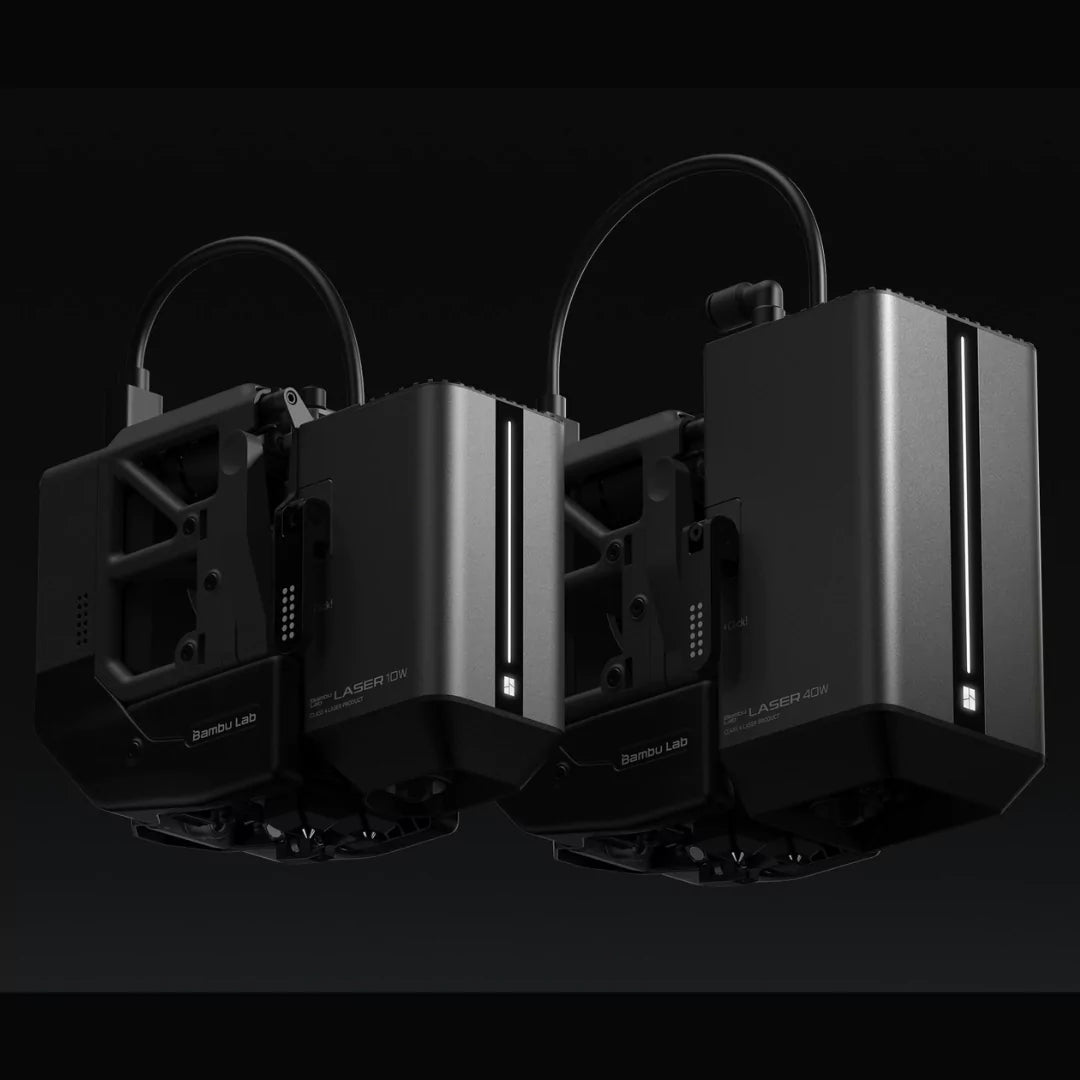

Laser Module (optional / Laser Edition)
- Semiconductor laser 455 nm, 10 W / 40 W
- Spot: 0.03×0.14 mm (10 W), 0.14×0.20 mm (40 W)
- Engrave area: 310×270 mm (10 W), 310×250 mm (40 W)
- Cut basswood up to 5 mm / 15 mm; engrave speed 400 / 1000 mm/s
- Micro-LiDAR Z (±0.1 mm); XY accuracy < 0.3 mm
- Air Assist & laser-safe windows on Laser Edition / upgrade kit
- Safety: Class 4 module; overall Class 1; flame/temperature/door sensors; safety key
- Materials: wood, rubber, coated metals, leather, dark acrylic, stone; Ø100 mm vent adapter
-
Digital Plotter/Cutter (optional)
- Cut area 300×285 mm; draw area 300×255 mm
- Blade 45°×0.35 mm, 50–600 gf; max cut 0.5 mm
- Pens Ø10.5–12.5 mm; LightGrip/StrongGrip mats
- Auto tool/mat recognition; bitmap & vector input
- Materials: paper, vinyl, leather
-
Power & Environment
- Input: 100–240 VAC, 50/60 Hz
- Max power: 1320 W (110 V) / 2200 W (220 V)
- Operating temp: printer 10–30 °C; laser 0–35 °C
